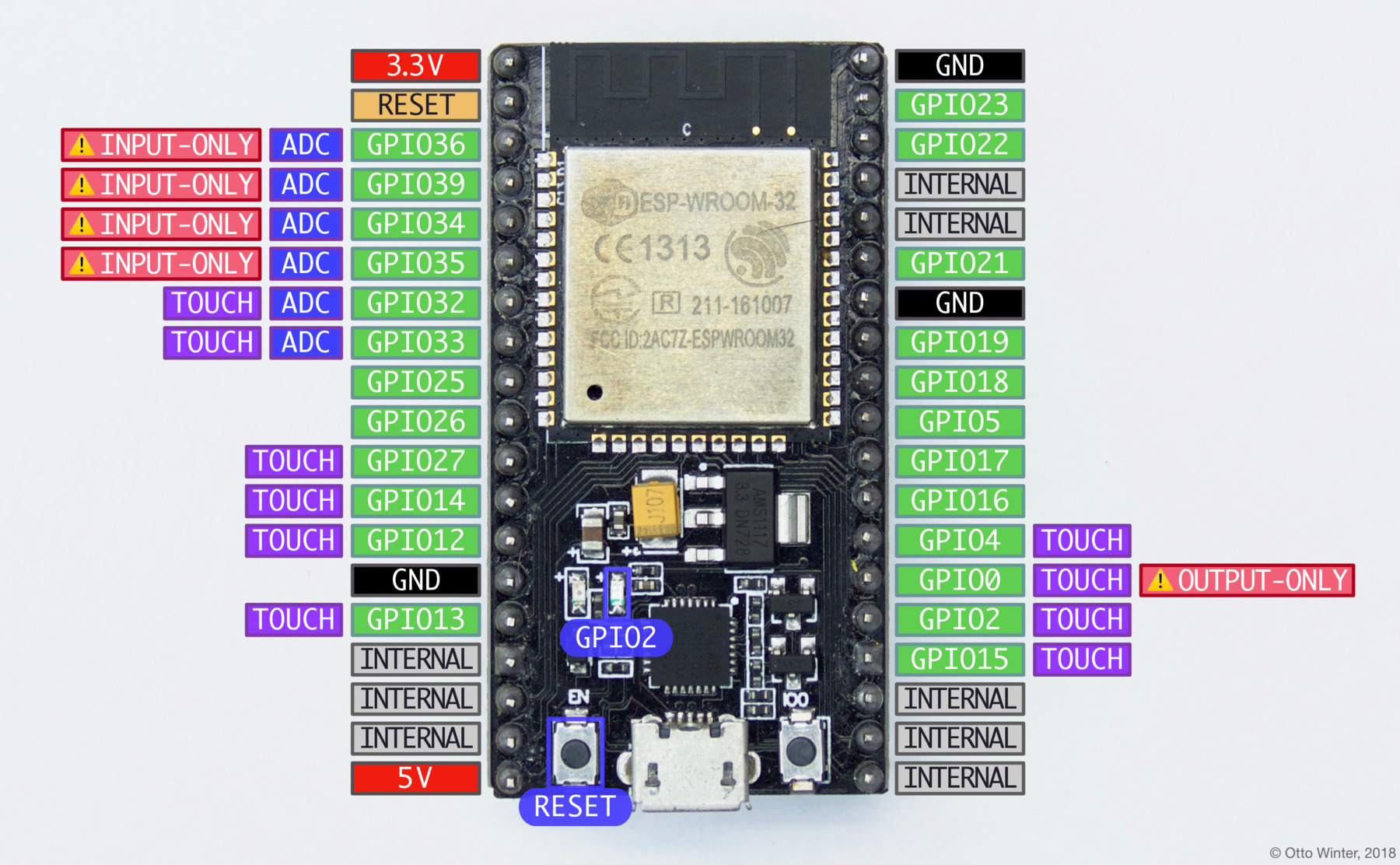

ESP32 NodeMCU

Spezifikation

Technische Daten

Stromversorgunsspannung (USB)	5V
Eingangs-/Ausgangsspannung	3.3V
Benötigter Betriebsstrom	min. 500mA
SoC	ESP32-WROOM 32
Taktfrequenzbereich	80MHz / 240MHz
RAM	512kB
Externer Flash-Speicher	4MB
I/O Pins	34
Schnittstellen	SPI, I2C, I2S, CAN, UART
Wi-Fi Protokolle	802.11 b/g/n (802.11n bis zu 150 Mbps)
Wi-Fi Frequenz	2.4 GHz - 2.5 GHz
Bluetooth	V4.2 - BLE und Classic Bluetooth
Drahtlose Antenne	PCB
Abmessungen	56x28x13mm

Nützliche Links

ESPHome NodeMCU ESP32

Code

nodemcu-esp32-01.yaml

substitutions:
  devicename: nodemcu-esp32-01
  upper_devicename: NodeMCU ESP32-01

esphome:
  name: $devicename
  friendly_name: $upper_devicename
  on_boot:
    priority: 250.0
    then:

  on_loop:
    then:
      - if:
          condition:
            - not:
                - script.is_running: demo_script
          then:
            - script.execute: demo_script

esp32:
  board: esp32dev
  framework:
    type: arduino


# Enable logging
logger:

packages:
  wifi: !include packages/wifi.yaml
  mqtt: !include packages/mqtt.yaml
  ota:  !include packages/ota.yaml


# Enable Home Assistant API
api:

captive_portal:

script:
  id: demo_script
  mode: single
  then:
    - logger.log:
        format: "Ich bin $upper_devicename"
    - delay: 1s

nodemcu-esp32.yaml

substitutions:
  devicename: nodemcu-esp32
  upper_devicename: NodeMCU ESP32

esphome:
  name: $devicename
  friendly_name: $upper_devicename
  on_boot:
    priority: 250.0
    then:

  on_loop:
    then:
      - if:
          condition:
            - not:
                - script.is_running: demo_script
          then:
            - script.execute: demo_script

esp32:
  board: esp32dev
  framework:
    type: arduino


# Enable logging
logger:

packages:
  wifi: !include packages/wifi.yaml
  mqtt: !include packages/mqtt.yaml
  ota:  !include packages/ota.yaml


# Enable Home Assistant API
api:

captive_portal:

script:
  id: demo_script
  mode: single
  then:
    - logger.log:
        format: "Ich bin $upper_devicename"
    - delay: 1s
